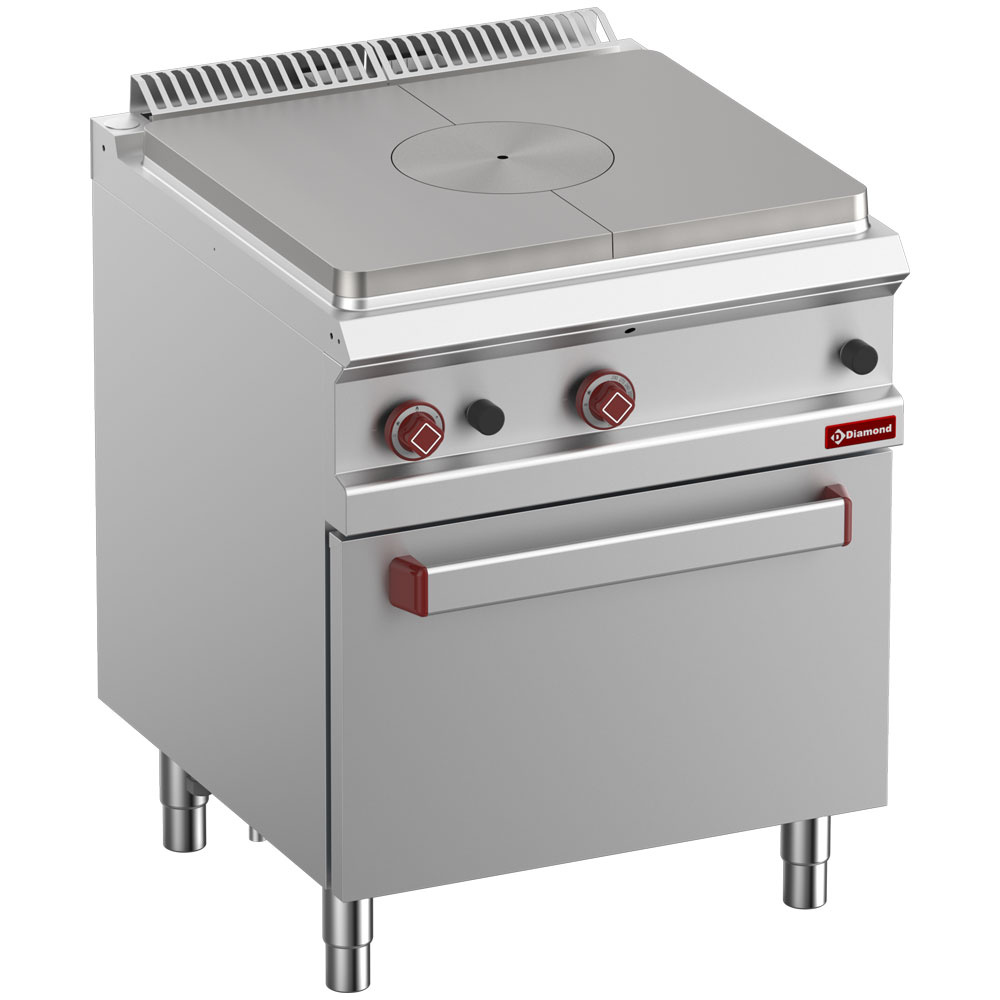

Cooking hob, gas oven GN 2/1

Description

Solid top, dimensions 670x585mm (10 kW).
Gas oven (6 kW) dimensions560x660xh310 mm.

Made of stainless steel AISI 304, stainless steel adjustable feet.
Deep-drawn and watertight top (15/10 mm) in AISI 304 stainless steel, integrated liquid collection basins, IPX5 water resistance.
Rear chimney in stainless steel AISI 304.
Oven enclosure and double-walled door (deep-drawn) made of stainless steel and provided with thermal insulation, side guides on 3 levels.
Oven door on spring hinges, stainless steel handle.
Cast iron solid plate (10 mm) with removable central ring, gas heating by a burner positioned in the centre of the combustion chamber. Combustion chamber thermally insulated with glass wool. Regulation by a gas valve, ignition by piezoelectric ignition and safety by thermocouple, front access for easy maintenance.
Gas oven, heating by stainless steel burners with stabilized flame. Oven temperature regulation from 150°C to 290°C, by a thermostatic gas valve, piezoelectric ignition and safety thermocouple, supplied with 1 grid.
