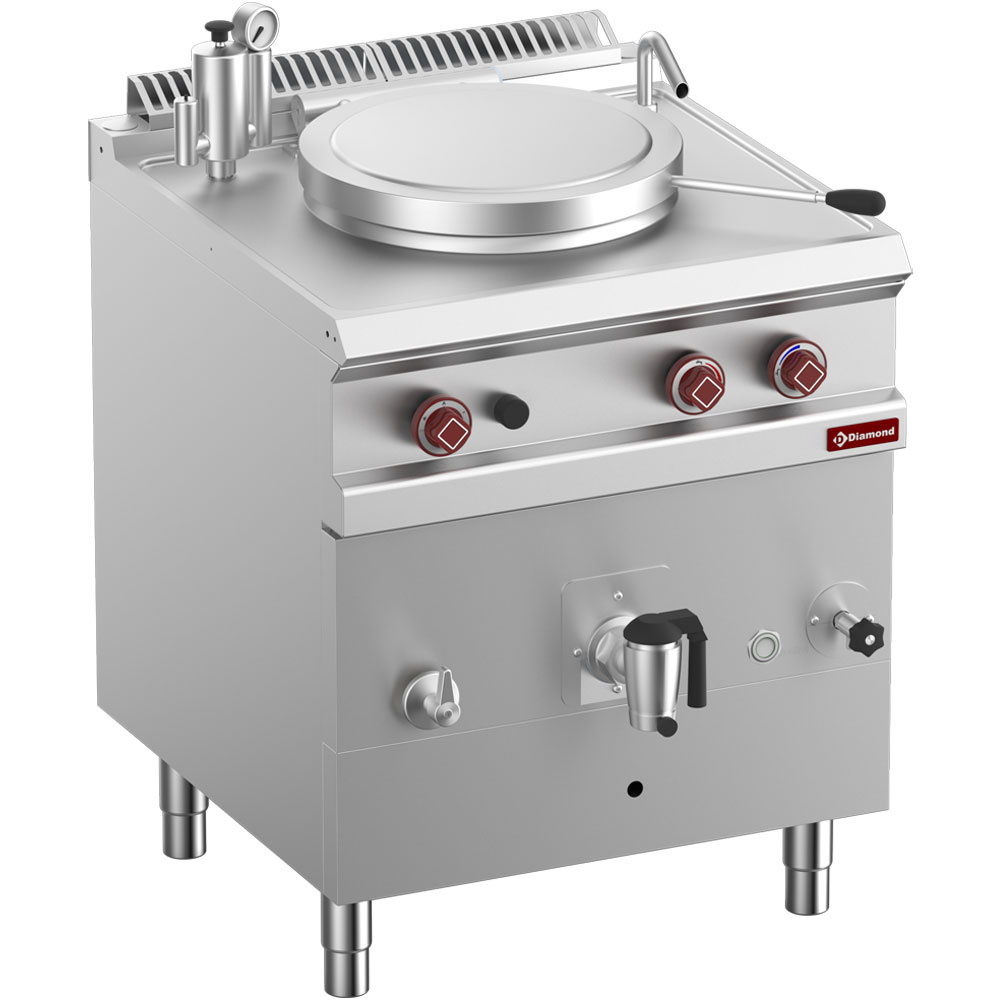

Gas boiling pan 50 liters – indirect heating

Description

Tank diameter 400 mm, depth 420 mm.
6/4″ drain valve.

Made of AISI 304 stainless steel, adjustable stainless steel feet.
Deep-drawn and waterproof top (15/10 mm) in AISI 304 stainless steel, IPX5 water resistance.
Rear chimney in AISI 304 stainless steel.
Deep-drawn tank made of AISI 304 stainless steel, bottom made of AISI 316 stainless steel (bottom of the tank 30/10 mm thick, side walls 20/10 mm thick), resistant to salt corrosion and wear, fitted with a removable strainer to protect the drain valve, rounded inner corner corners for easy and hygienic maintenance. Water tap for filling the tank, with the control positioned on the front panel.
Deep-drawn lid, hinges with « torsion spring » allowing gradual closing and opening, fitted with an ergonomic side handle made of stainless steel.
Indirect heating, double-walled tank, water filled via a tap on the front of the appliance, with a second tap acting as an overflow to check that filling is complete, warning light and drain tap. Double wall pressure controlled to 0.5 bar by pressure switch, safety device with pressure gauge and vacuum valve located above the top.
Gas heating using stainless steel burners with stabilised flame, regulated by valve, ignition by pilot light and thermocouple safety system, mechanical piezo device, front access for easy maintenance.
