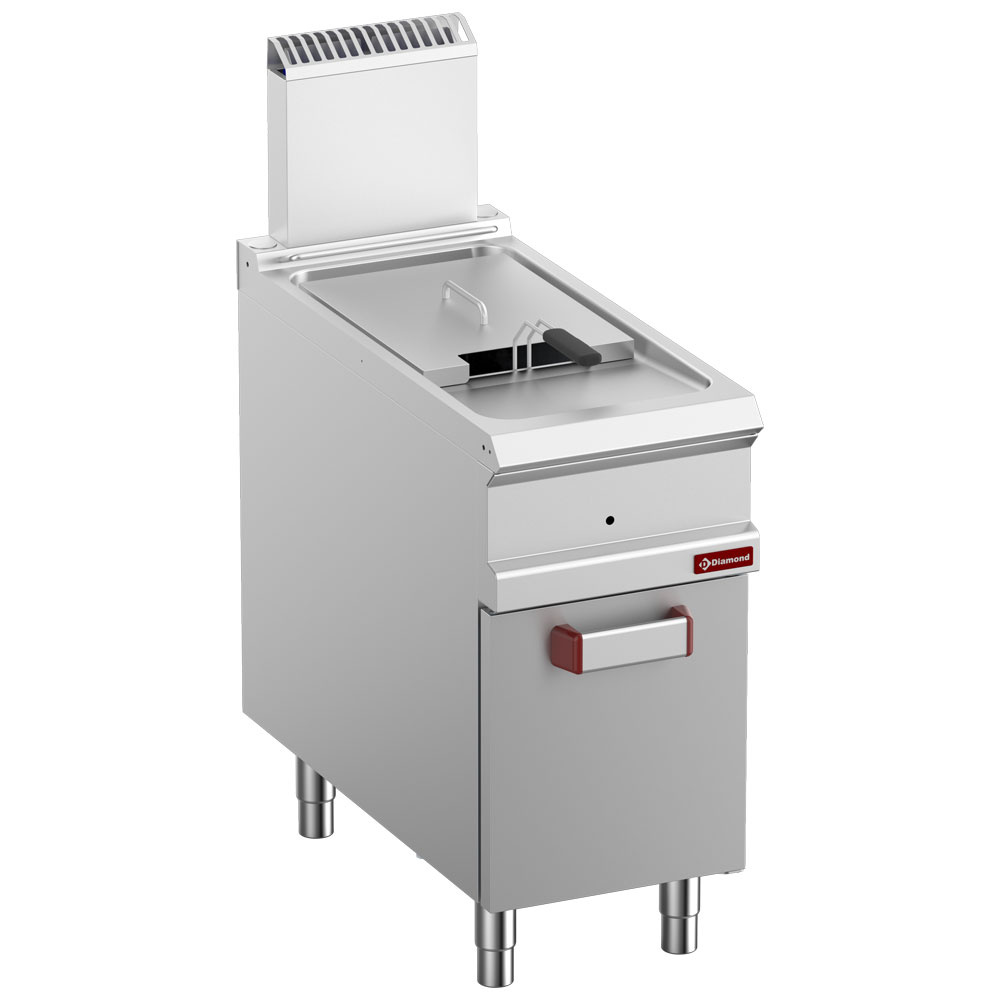

Gas fryer 1 tank 18 liters (18 kW) on closed cupboard

Description

Tank dimensions 300x400xh315 mm.
Quantity of oil in use, min. 16 liters max. 18 liters.
1 chrome steel basket, dimensions 270x360xh140 mm.

Made of stainless steel AISI 304, adjustable cylinders.
Deep-drawn and watertight top (20/10 mm) in stainless steel AISI 304, IPX5 water resistance.
Rear chimney in stainless steel AISI 304.
Deep-drawn tank in AISI 304 stainless steel with all corners and inside angles rounded for easy and hygienic maintenance, fitted with cold zone. Drain tap with ball valve placed in the cabinet. Stainless steel lid. Oil decanting tank, placed in the lower cabinet.
Gas-fired heating using heat exchangers immersed in the tank, fed by cast-iron burners with horizontal flames. Temperature regulation from 90°C to 190°C, by thermostatic valve, ignition by pilot light and safety system by thermocouple, piezoelectric device, front accessibility allowing very easy maintenance.
