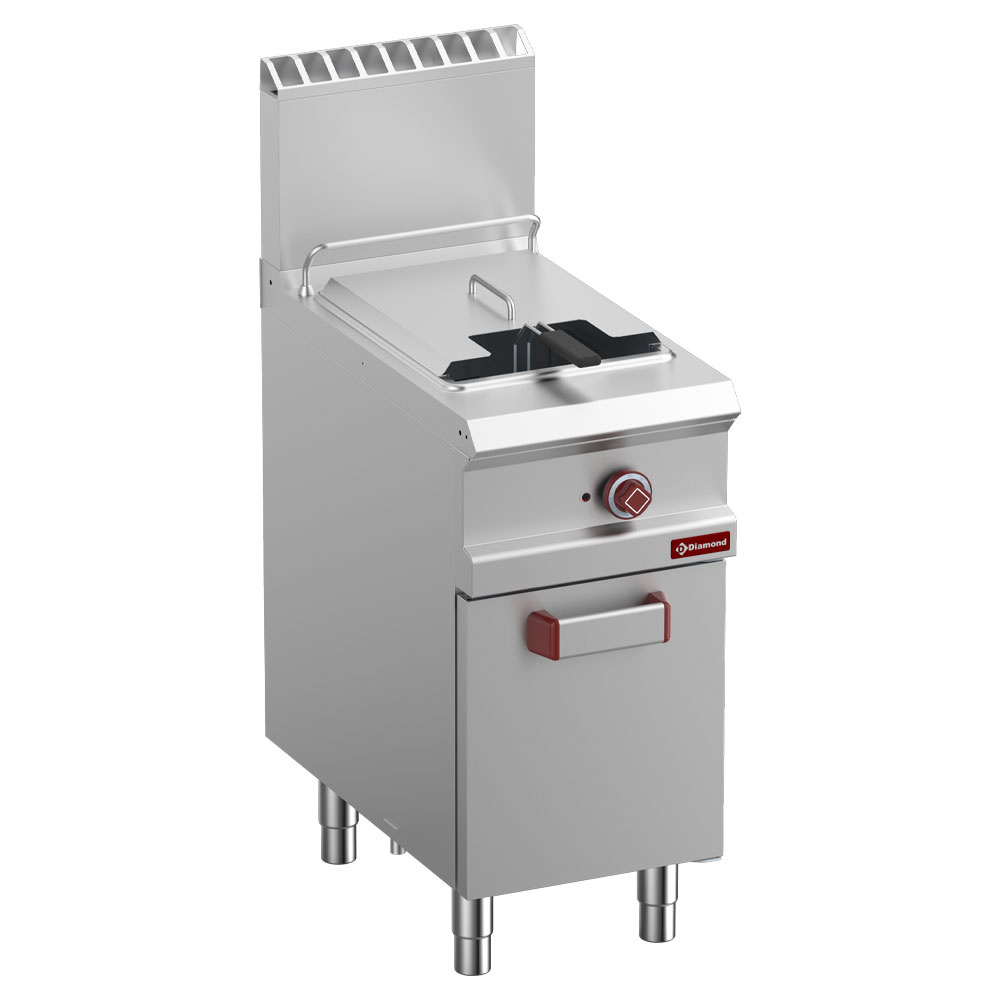

Gas fryer 1 tank « Y » 14 lit. on cupboard

Description

Deep-drawn « Y » tank with rounded corners.
Tank dimensions 310x430xh400 mm.
Oil quantity at use, min. 13L, max. 14L.
Chrome-plated steel basket, dimensions 295x290xh130 mm.

Made of stainless steel AISI 304, adjustable cylinders.
Deep-drawn and watertight top (15/10 mm) in stainless steel AISI 304, IPX5 water resistance.
Deep-drawn tank in AISI 304 stainless steel with all corners and inside angles rounded for easy and hygienic maintenance, fitted with cold zone. Stainless steel lid. Ball valve for draining the tank and oil settling tank, located in the lower cabinet.
Gas-fired heating using heat exchangers immersed in the tank, fed by cast-iron burners with horizontal flames. Temperature regulation from 90°C to 190°C, by thermostatic valve, ignition by pilot light and safety system by thermocouple, piezoelectric device, front accessibility allowing very easy maintenance.
