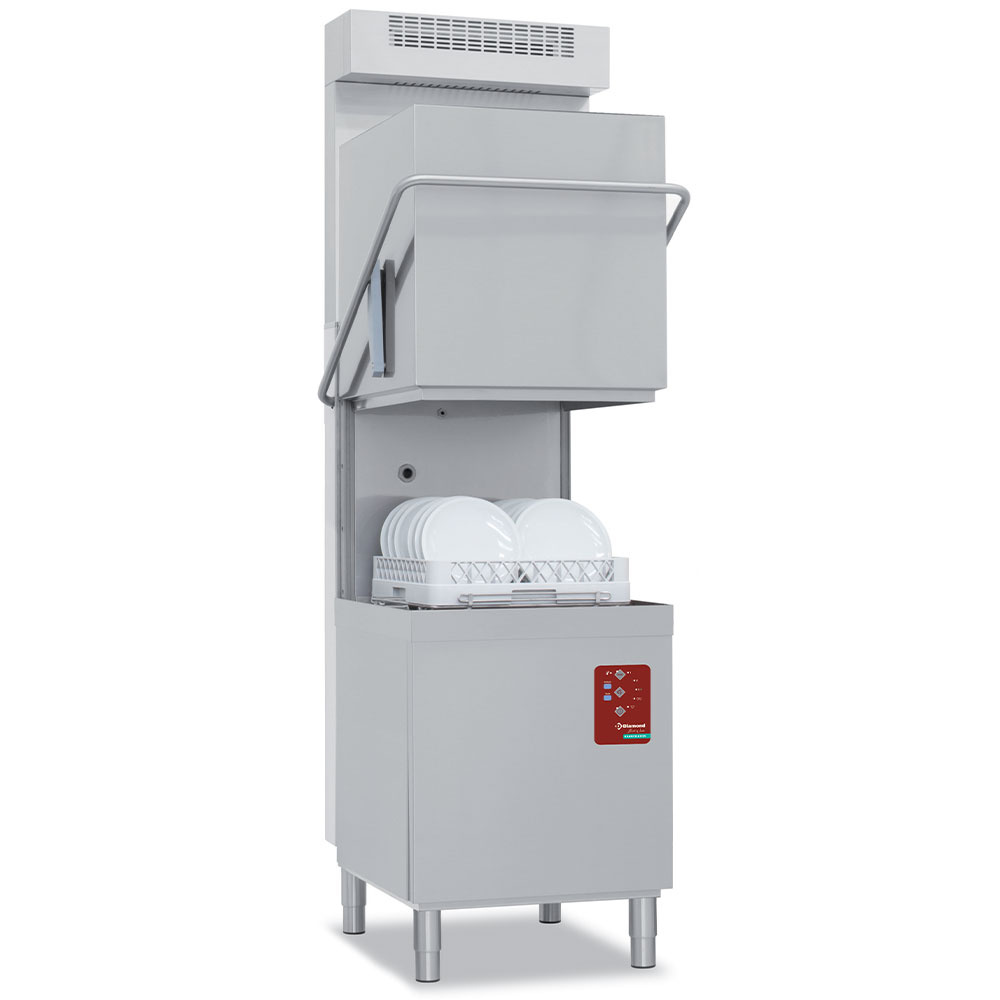

Hood dishwasher, basket 500×500 mm « Full Hygiene », with softener continuously + condenser-recuperator of the steam

Description

Height of plates load Ø 450mm.
Built-in continuous water softener.
Built-in « Green System H.R.S. », vapour-recovery condenser, great energy savings.
Load height Ø 450mm.
From 20 to 30 baskets/hour, 110″, 150″, continuous and  » Sanitisation » PLD cycles.
3 stages: washing, discharge, rinse.
Standard discharge pump.
Standard rinse pump (atmospheric boiler).

Double-walled version completely in AISI 304 stainless steel. Rotating washing and rinsing arms, entirely in stainless steel. Self-cleaning stainless steel nozzles. Fully « deep-drawn » tank (20L – 2.5kW). Integral filter in stainless steel tank. External piping to the washing chamber. Polypropylene pump filter. Vertical washing pump (double flow), self-draining and self-cleaning 1,3 Hp (230V/1). Cover with double insulated walls, opening and closing device on connecting rods. Frontally accessible control panel for easy servicing. Adjustable stainless steel feet (160-220 mm).
Automatic water discharge function in the tank, integrated in the control panel (no need to remove the plug manually). Automatic filling of the tank. Non-return valve. Hot water rinsing (water consumption per cycle 3L), stainless steel boiler (12L – 8 kW). Tank and boiler temperature can be regulated. Microswitch for stopping the cycle when the cover is opened. Safety thermostat. Included: 1 plate basket, 1 generic basket, 1 beaker.
